  • LED Door Turn Signal Indicator Shown With Sequential Turn Signals

    Thanks to CorvetteBlogger, we have this combination of both the Corvette’s door mirrors showing for the first time its turn signal indicator and also the sequential turn signal “fade.” Shown in the GIF below.



    Originally posted by CorvetteBlogger

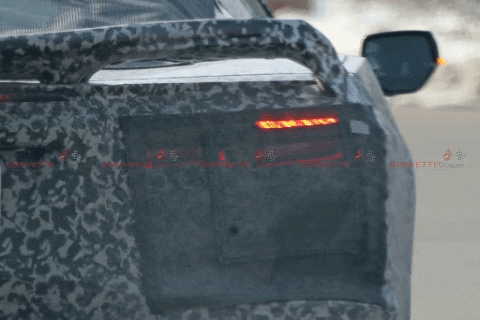

    We would say the biggest new feature we are able to glean from these new photos is that the rear taillights use a sequential turn indicator sequence that shows an orange turn signal as an LED strip above the taillights with the light moving from the middle of the car to the outside. We threw the three main images that make up this feature into a quick gif which you can see below. The other interesting portion of this gif shows a turn-signal indicator on the passenger’s side rearview mirror.




    https://www.corvetteblogger.com/2019...te-spy-photos/
    Attached Files
    Last edited by John; 02-25-2019, 02:10 PM.
    GBA Black; HTO Twilight/Tension interior; Z51 & Mag Ride; E60 lift; 5VM visible carbon fiber package; 5ZZ high wing; FA5 interior vis CF; ZZ3 engine appearance; 3LT; Q8T Spectra Gray Tridents; J6N Edge Red Calipers; SNG Edge Red Hashmarks; VQK Splash Guards; RCC Edge Red engine cover; VJR illuminated sill plates. Lifetime, annual contributors, and 23 year members of National Corvette Museum. Home is the beautiful Pacific Northwest.

  • #2
    Thanks John!

    Here's a closer view of the mirror turn signal indicator when off:

    Senior Editor and Founder of CorvetteBlogger.com. I drive my dad's 1966 Corvette Sting Ray Convertible and the National Corvette Museum is my personal Graceland.

    Comment


    • #3
      Great picture Keith! We now also see our clearest differentiation of the mirror housing’s shape/stalk. Is it also possible that what we thought was a singular LED light strip at the top of the headlight, is actually two strips, each with a wider section at their rearmost part?
      GBA Black; HTO Twilight/Tension interior; Z51 & Mag Ride; E60 lift; 5VM visible carbon fiber package; 5ZZ high wing; FA5 interior vis CF; ZZ3 engine appearance; 3LT; Q8T Spectra Gray Tridents; J6N Edge Red Calipers; SNG Edge Red Hashmarks; VQK Splash Guards; RCC Edge Red engine cover; VJR illuminated sill plates. Lifetime, annual contributors, and 23 year members of National Corvette Museum. Home is the beautiful Pacific Northwest.

      Comment


      • #4
        There is a minimum size under US regs for the turn signal lamp that illuminates first. 75 sq cm or 12 5/8 sq in.

        So it looks to be partially obscured in that image. It could in reality be 12 x 1 for instance. To meet the reg the whole strip would illuminate and then sequentially go out. Which is a fairly elegant solution.

        2020 C8 Corvette.D.O.B 2/03/2020
        Shadow Grey Metallic on Black
        2LT, Z51 + MRC. GT1 seats.
        Spectra Grey Tridents.
        Carbon flash mirrors and spoiler.

        Comment


        • #5
          Great picture CorvetteBlogger. I am seeing top of fender detail better than every before. Thank you.

          Comment


          • #6
            Thank you Bikerjulio. Elegant solutions are always better than elegant screw ups.
            GBA Black; HTO Twilight/Tension interior; Z51 & Mag Ride; E60 lift; 5VM visible carbon fiber package; 5ZZ high wing; FA5 interior vis CF; ZZ3 engine appearance; 3LT; Q8T Spectra Gray Tridents; J6N Edge Red Calipers; SNG Edge Red Hashmarks; VQK Splash Guards; RCC Edge Red engine cover; VJR illuminated sill plates. Lifetime, annual contributors, and 23 year members of National Corvette Museum. Home is the beautiful Pacific Northwest.

            Comment


            • #7
              Looking at the set closer, I found another one which shows the driver's side illuminated. You can also see that much of the turn signal on the headlights is covered by camo, which turns orange under it when activated:

              Senior Editor and Founder of CorvetteBlogger.com. I drive my dad's 1966 Corvette Sting Ray Convertible and the National Corvette Museum is my personal Graceland.

              Comment


              • #8
                Super pictures CorvetteBlogger. Thanks also for the gif.

                Comment


                • #9
                  Originally posted by John View Post
                  Thank you Bikerjulio. Elegant solutions are always better than elegant screw ups.
                  Thought you'd like that

                  European regs allow more latitude with cars like Audi and my Golf R having a sequentially lit strip in that market. In North America they have to fit different turn signals which light up all at once and not nearly as cool. Some people pay a small fortune to import the Euro lights which also involves reworking the wiring harness and getting into the car's software and messing around.
                  2020 C8 Corvette.D.O.B 2/03/2020
                  Shadow Grey Metallic on Black
                  2LT, Z51 + MRC. GT1 seats.
                  Spectra Grey Tridents.
                  Carbon flash mirrors and spoiler.

                  Comment


                  • #10
                    good catch on those mirror mounted turn signals Corvetteblogger ... I'm amazed you guys find this stuff

                    Comment


                    • #11
                      I think this is the first sequential turn signal i've seen that starts large and subtracts segments, as opposed to starting with one light on the inside, and adding segments toward the outside as the signal flashes.
                      Delivered 5/29!: Scarlet Fever 2021 2LT HTC, Red Mist Metallic Tintcoat, two-tone Natural w/ suede inserts, Mag Ride, Performance Exhaust

                      Current C7: SunKissed, 2015 2LT, 7MT, Black overDaytona Sunrise Orange Metallic, Stingray convertible

                      Proud member of the Old Dominion Corvette Club: https://www.olddominioncorvetteclub.org/

                      Never grow up - It's a trap.

                      Comment


                      • #12
                        Originally posted by meyerweb
                        I think this is the first sequential turn signal i've seen that starts large and subtracts segments, as opposed to starting with one light on the inside, and adding segments toward the outside as the signal flashes.
                        I wonder if that is because its overall lit area is small, and thus to meet the Federal lighting standards Bikerjulio mentioned above, that GM has done it this way. Or, is this another GM deliberate misdirection play and when the ME is revealed, the wires are reversed, or the light strip is reversed so we are then seeing something different?

                        If so, we again are a source of merriment to the C8’s engineers/designers.
                        Last edited by John; 02-25-2019, 03:11 PM.
                        GBA Black; HTO Twilight/Tension interior; Z51 & Mag Ride; E60 lift; 5VM visible carbon fiber package; 5ZZ high wing; FA5 interior vis CF; ZZ3 engine appearance; 3LT; Q8T Spectra Gray Tridents; J6N Edge Red Calipers; SNG Edge Red Hashmarks; VQK Splash Guards; RCC Edge Red engine cover; VJR illuminated sill plates. Lifetime, annual contributors, and 23 year members of National Corvette Museum. Home is the beautiful Pacific Northwest.

                        Comment


                        • #13
                          Originally posted by John View Post
                          Thank you Bikerjulio. Elegant solutions are always better than elegant screw ups.
                          Click image for larger version

Name:	IMG_2425.PNG
Views:	420
Size:	175.4 KB
ID:	27641 Hmmm , that name sounds familiar....
                          A thought if I might ...

                          Comment


                          • #14
                            Originally posted by John View Post
                            we again are a source of merriment to the C8’s engineers/designers.
                            If not about this, no doubt about some other things. At the same time, though, I'm sure they are occasionally impressed with what we get right.
                            Delivered 5/29!: Scarlet Fever 2021 2LT HTC, Red Mist Metallic Tintcoat, two-tone Natural w/ suede inserts, Mag Ride, Performance Exhaust

                            Current C7: SunKissed, 2015 2LT, 7MT, Black overDaytona Sunrise Orange Metallic, Stingray convertible

                            Proud member of the Old Dominion Corvette Club: https://www.olddominioncorvetteclub.org/

                            Never grow up - It's a trap.

                            Comment


                            • #15
                              Awesome shots! Getting very interesting seeing so much more detail. Thanks CorvetteBlogger.
                              Rocket City Florida- 2001 ZO6 - 2013 427 Vert - 2020 Stingray
